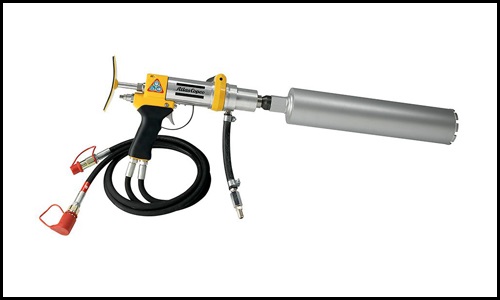

The jack-of-all-trades in core drilling
Core drills are used by construction professionals in a wide range of applications including building renovation and utility works. They are relied on to install drainage, sewer and water pipes, plus cable and ventilation ducts where large and deep holes are needed. Core sampling in asphalt roads is another perfect application for this high performing drill.
Technical specifications
| Model | LCD 500 | LCD 1500 |
|---|---|---|
| Weight incl. hoses | 9.5 kg (21 lb) | 9 kg (20 lb) |
| Service weight incl. tool (112 mm) | 13 kg (29 lb) | 13 kg (29 lb) |
| Length without drill | 414 mm (16 in) | 406 mm (16 in) |
| Oil flow | 20-30 l/min (5.28-7.93 gpm) | 20-30 l/min (5.28-7.93 gpm) |
| Working pressure | 60-120 bar (1,160-2,495 psi) | 60-120 bar (1,160-2,495 psi) |
| Revolutions | 600-900 rpm | 1,500-2,250 rpm |
| Drill diameter | 50-202 mm (1,968 1/2-7,952 23/32 in) | 12-75 mm (15/32-2 15/16 in) |
| Thread female (drive shaft) *1 | 1/2″ BSP | 1/2″ BSP |
| Vibration level 3 axes (ISO 28927-5), 20 lpm *2 | 3.1 m/s² | 2.7 m/s² |
| Sound pressure level (ISO 11203) *2 | <70 Lp, r=1dB(A) | <70 LP, r=1 dB(A) |
| EHTMA class | C/D | C/D |
| Part number | 1806 1014 38 | 10806 1014 39 |
Bits
| Diamond core bits (thread 1 1/4 UNC) | mm (in) | 62 (2 7/16) | 82 (3 1/4) | 102 (4) | 112 (4 3/8) | 132 (5 1/4) | 152 (6) | 162 (6 3/8) | 200 (8) |
|---|---|---|---|---|---|---|---|---|---|
| Length | mm (in) | 450 (18) | 450 (18) | 450 (18) | 450 (18) | 450 (18) | 450 (18) | 450 (18) | 450 (18) |
| Weight | kg (lb) | 1.7 (3.75) | 2.4 (5.3) | 3.2 (7.05) | 3.7 (8.16) | 4.6 (10.14) | 6 (13.23) | 6.3 (13.9) | 9.9 (21.83) |
| Part number | 3378 0050 61 | 3378 0050 62 | 3378 0050 63 | 3378 0050 64 | 3378 0050 65 | 3378 0050 66 | 3378 0050 67 | 3378 0050 68 |
Water kit
| Water kit with pressure tank | ||
|---|---|---|
| Water volume | l (gal) | 10 (2.6) |
| Size (W+H+D) | mm | 220*620*250 (9*24*10) |
| Weight | kg | 8 (18) |
| Comments | Water supply for LS cut-off saw and LCD core drill | |
| Part number | 3371 8090 02 |
